Description

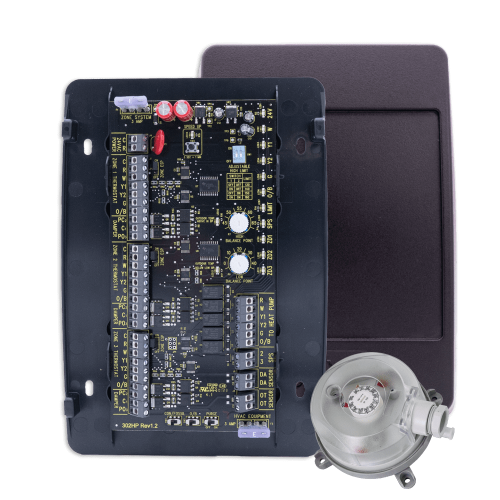

The ZP3-HPS-ESP model is designed to fit 3 zone applications for heat pump or dual fuel systems in residential and light commercial applications.
The panel allows a single HVAC unit to have up to three separate zones. Each zone is controlled by its own thermostat. When a zone thermostat calls for heating or cooling, the zones not calling will have their dampers powered closed, and the zones calling will have their dampers powered opened. The heating or cooling equipment will also be brought on.
Features:
- Built-in static pressure control eliminates the need for a bypass damper
- Auto changeover
- First call priority with time share
- LED status indication
- Independent fan control by zone
- Short cycle protection
- Competitively priced
- Works with 2 or 3 wire zone dampers*
- Adjustable high limit
- Adjustable high and low balance point (HPS)
